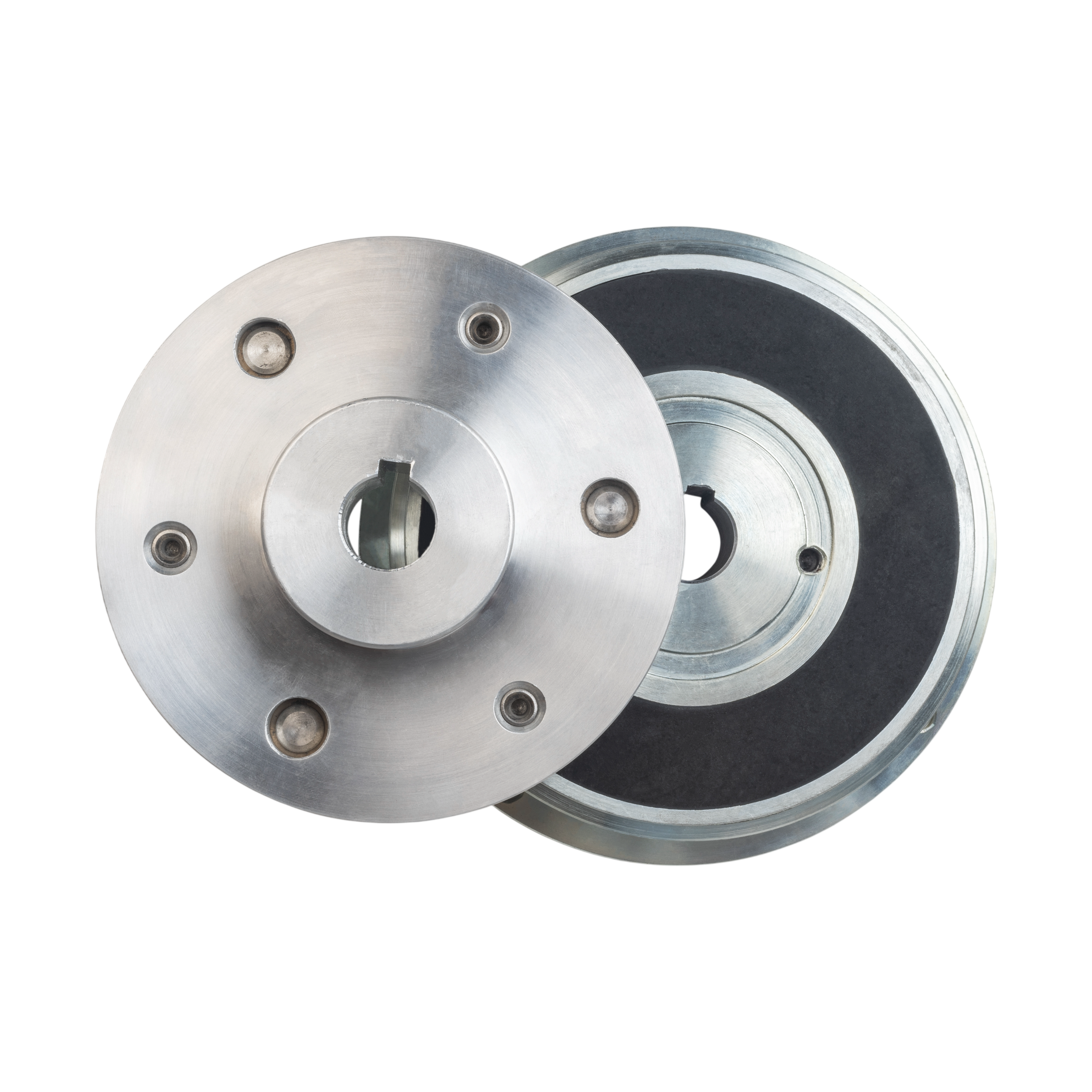

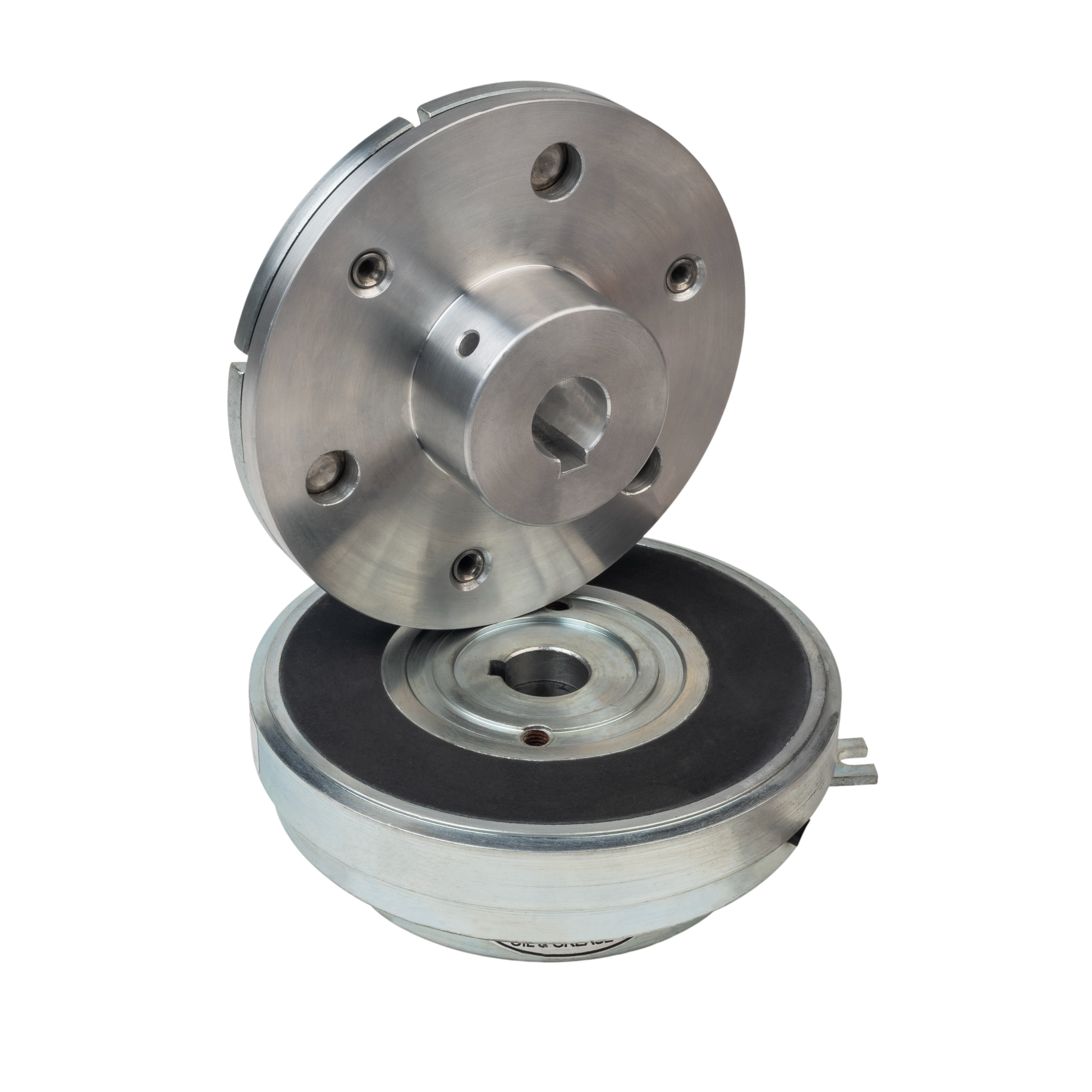

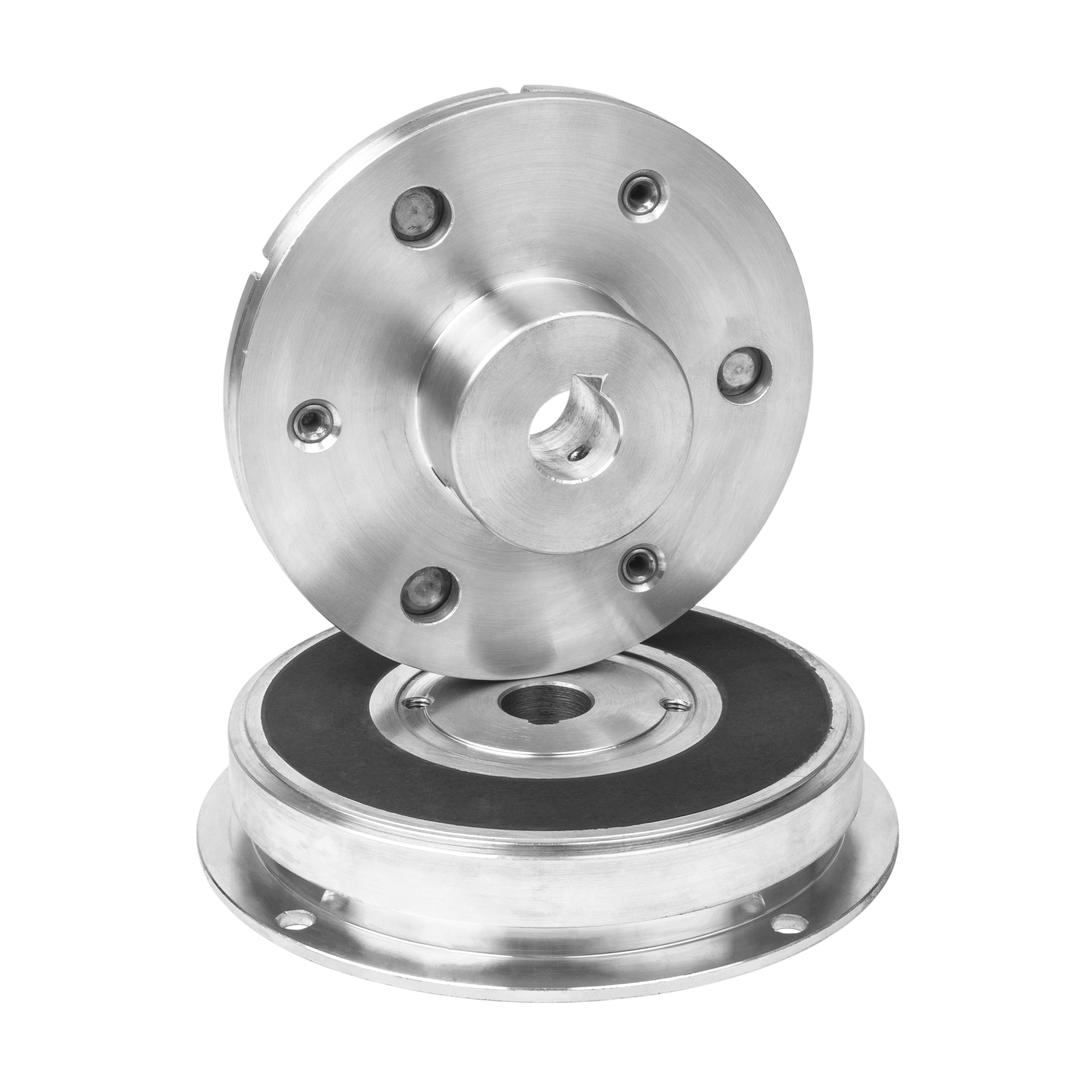

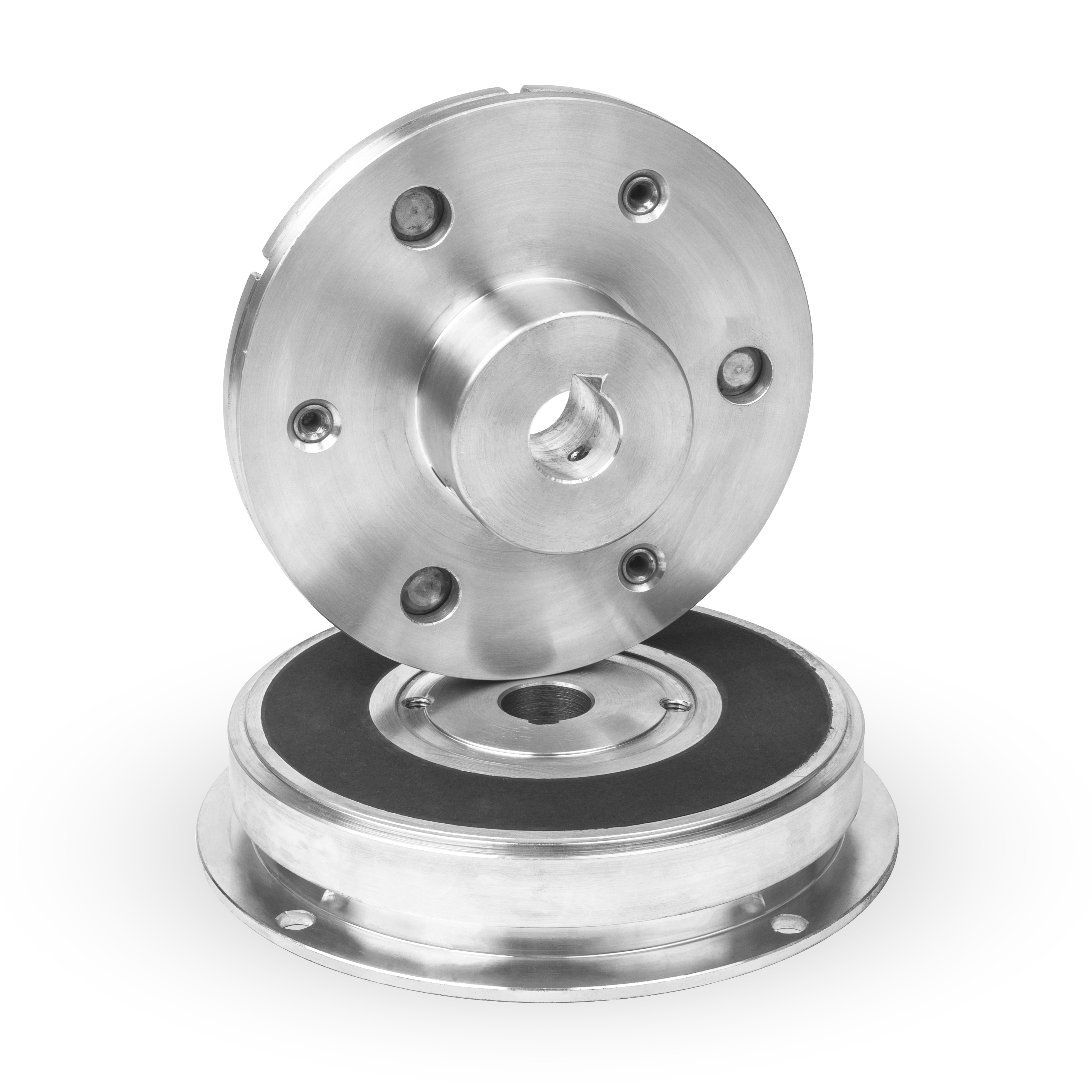

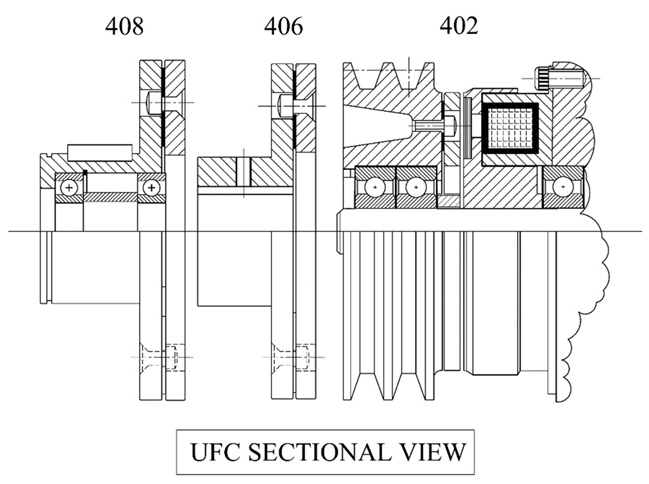

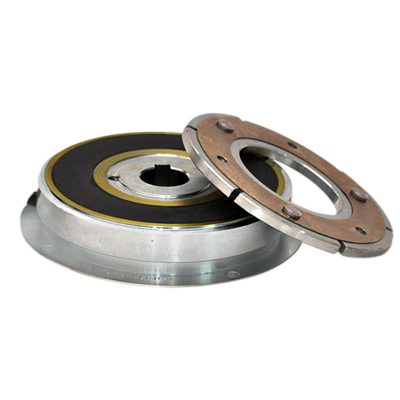

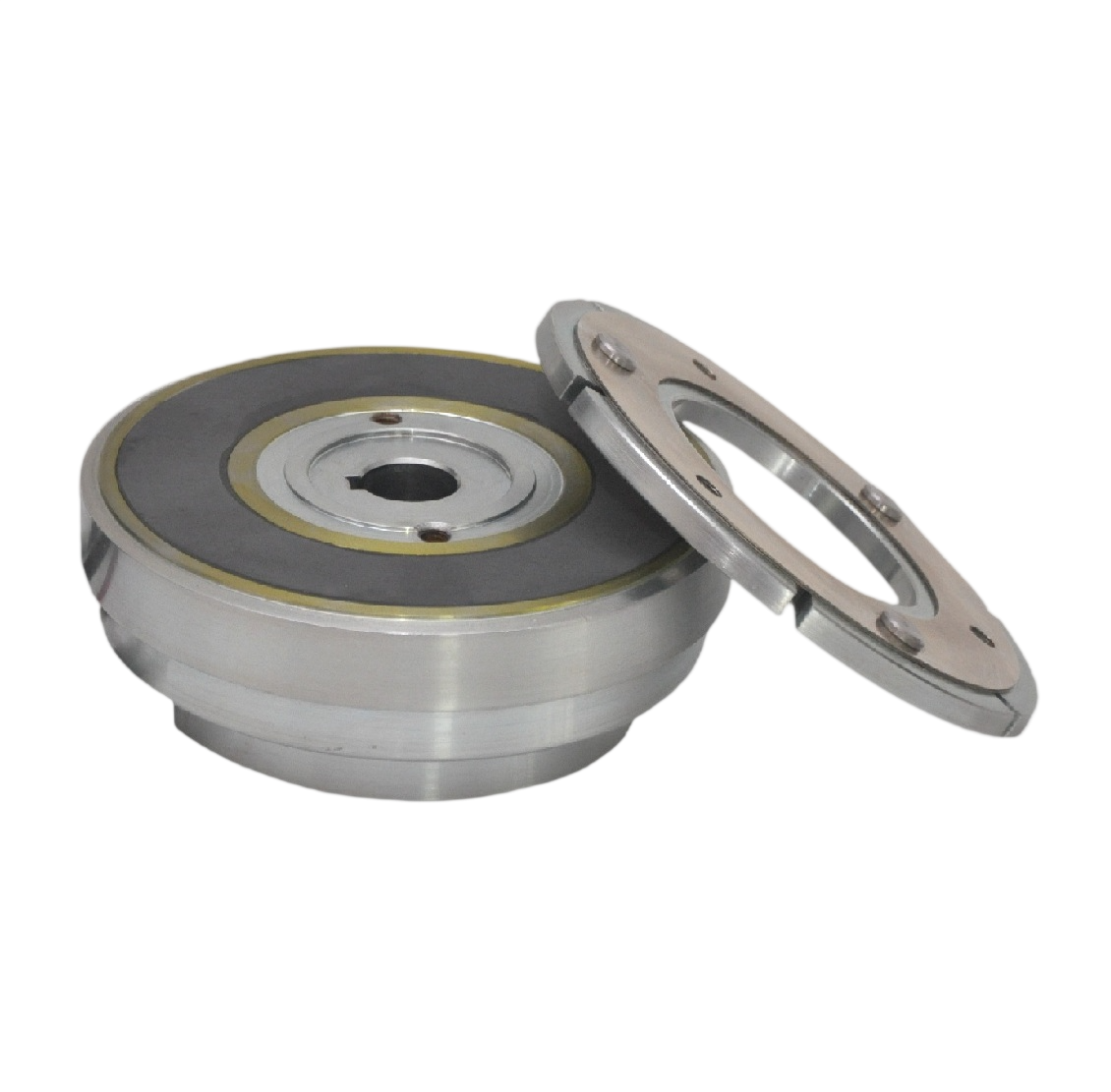

UFC Series

Flange Mounted & Bearing Mounted

(Normally off Type Clutches)

Torque rating available

8 Nm – 500 Nm

Product Features:

Simple Construction
Single plate dry operations
Simple to install on prime mover and driven load
High switching times
Maintenance free long life
Special Prestressed Leaf Spring
Asbestos free imported friction liners
Zero Backlash
Slotted armature for uniform torque
Insulation class “F”
Uniform operating characteristics
High operating frequency and reliability
Consistent operating characteristics
Low inertia of rotating parts
Residual free

Product Brochure

Working Principle

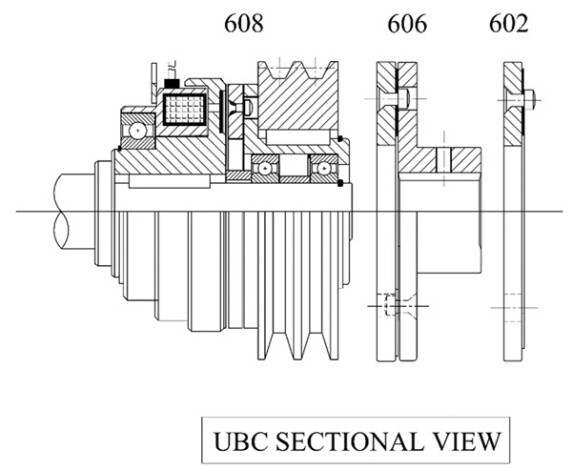

UNITORQ- ELECTROMAGNETIC DC NORMALLY OFF CLUTCHES comes in two variants ie. Flange Mounted -UFC Series & Bearing Mounted – UBC series. Both are normally off type and operate on DC Voltage. On applying DC Voltage to Stator (Coil) strong magnetic field is produced, which pulls the armature towards the friction material of the rotor over the air gap and torque gets transmitted free of backlash. On Switching off power supply, the unique prestressed spring pulls the armature back into the original position and clutch is positively released free from residual torque.
