Flange Mounted Brakes

UFB Series

Flange Mounted Brakes

(Normally off Type)

Torque rating available

8 Nm – 2550 Nm

Product Features:

  • Simple Construction
  • Zero Backlash & stationary field “No Slip Rings”
  • Compact Design
  • Fast switching times
  • Maintenance free long life
  • Special Prestressed Leaf Spring
  • Single plate dry operations
  • Insulation Class “H” Dual coated
  • Asbestos free imported friction liners
  • Low intertia of rotating parts
  • Uniform operating characteristics
  • High operating frequency and reliability
Product Brochure

Working Principle

These types of brakes are normally-off type and operates on power. When power is given to stator (coil), the armature is attracted towards the asbestos free friction liner of the brake stator which clamps the rotating component stop at once.

On switching off the electric power m the unique prestressed spring pulls the armature plate back into its original position and brake gets positively released with no residual torque.

Features

  • Wide temperature range from -25 to +60 c
  • Flexible mounting position available
  • CE Certified
  • High interference immunity
  • Very fast acting
  • Compact & Robust housing

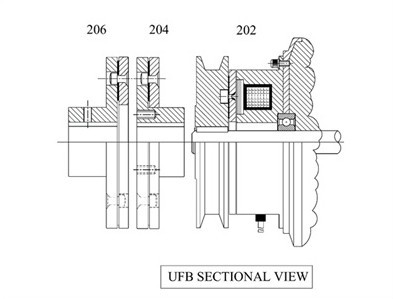

Flange Mounted Brakes Models

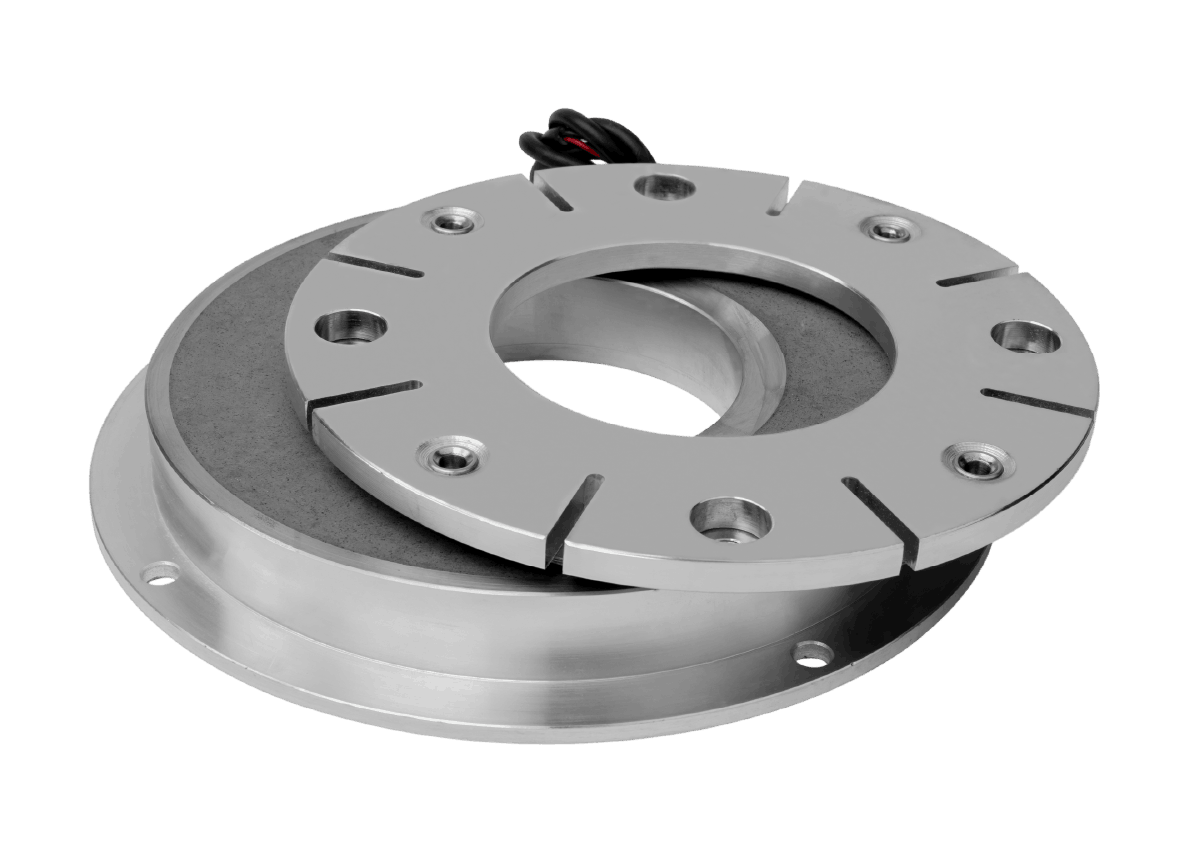

Design 202

Design 202

Brake without Flange Hub

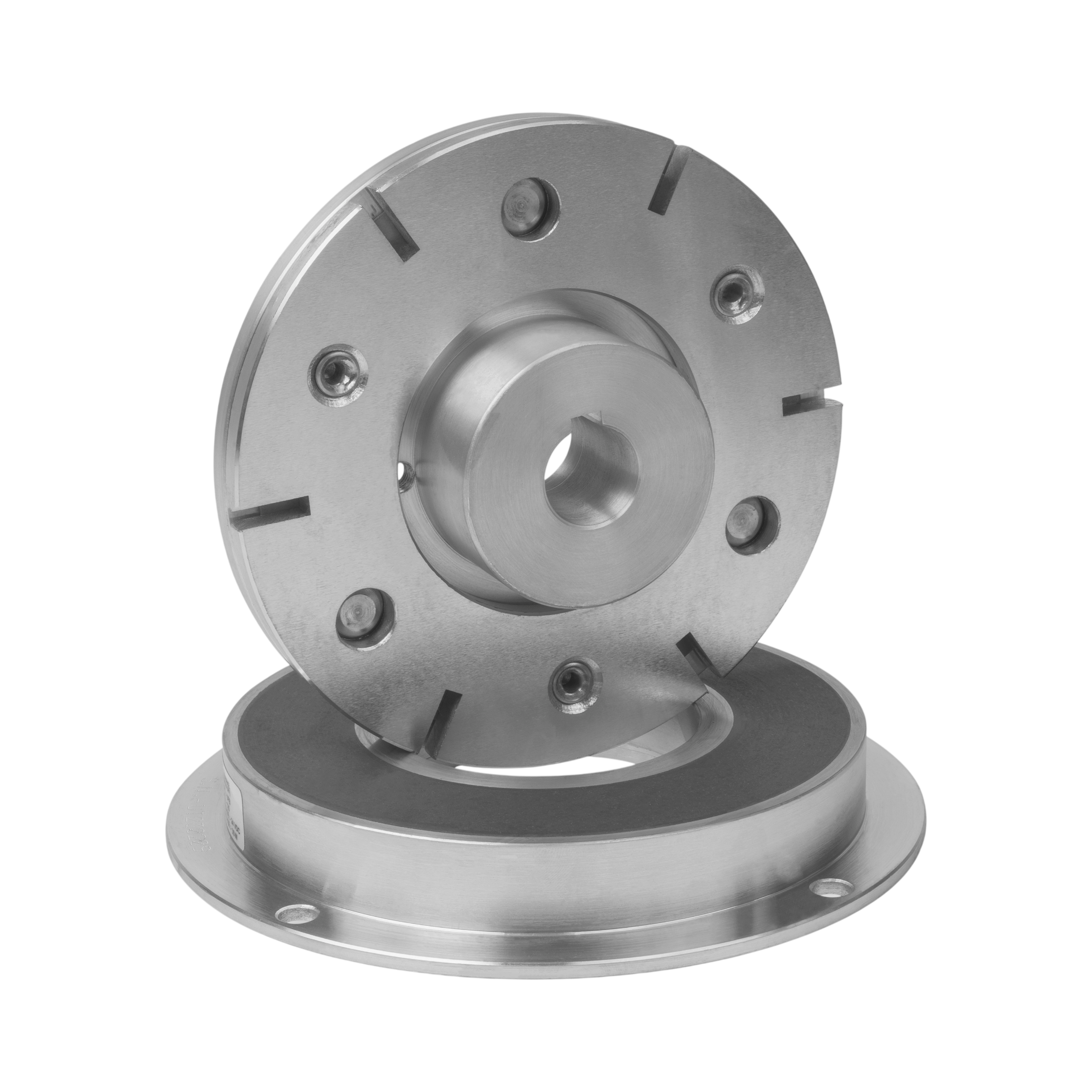

Design 204

Design 204

Brake with Internal Flange Hub

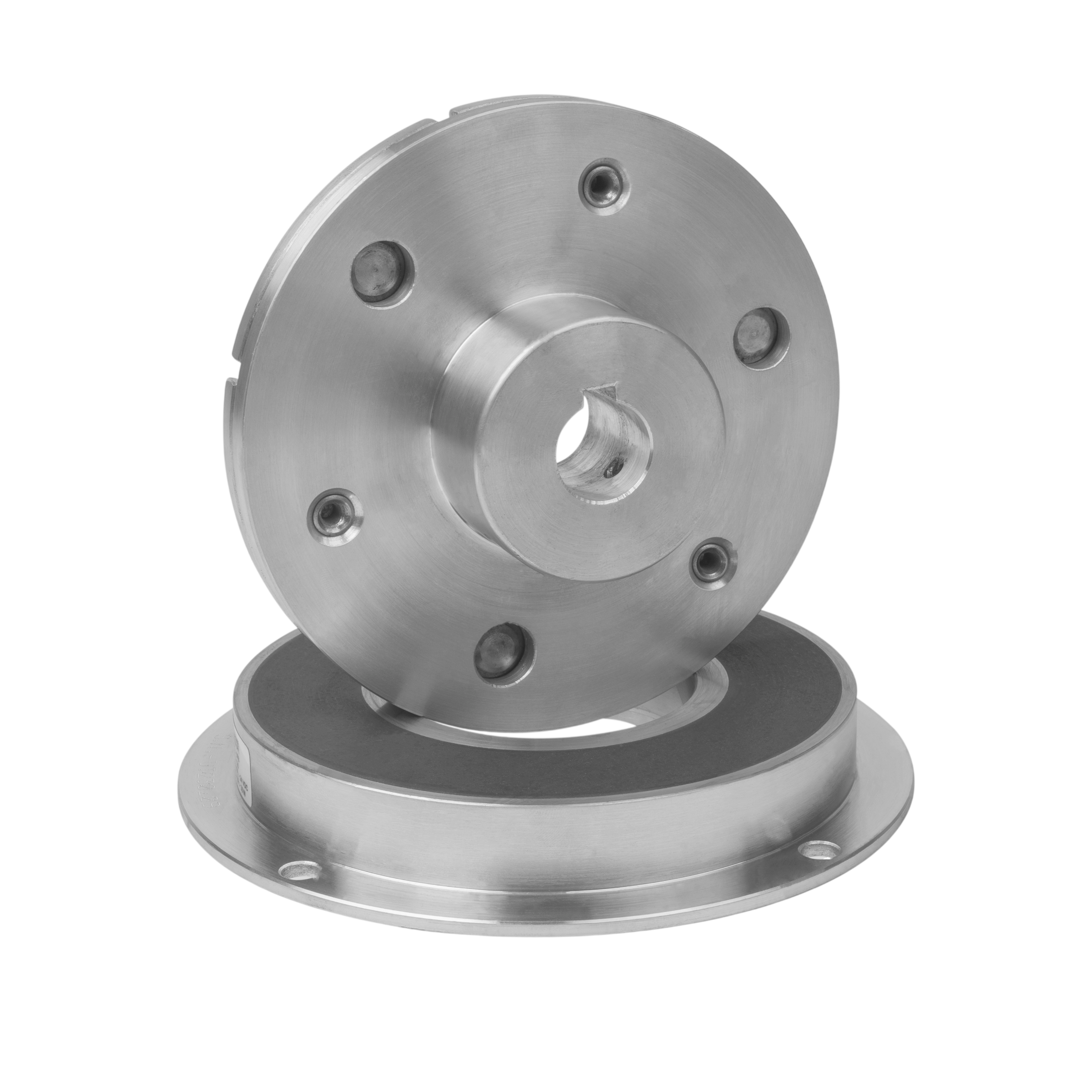

Design 206

Design 206

(Brake with External Flange Hub)
